Send InquiryS Load Cell
Price 4200 INR/ Unit
MOQ : 1 Unit
S Load Cell Specification
- Operate Method
- Semi-Automatic
- Usage
- Industrial
- Voltage
- 9 to 12 Volt (v)
- Capacity
- 5-10000 Kg
- Material
- Alloy Steel
- Output
- Digital Sensor
- Compensated Temperature
- -10 to +40 Celsius (oC)
S Load Cell Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 1000 Units Per Month
- Delivery Time
- 2-10 Days
- Main Domestic Market
- All India
About S Load Cell

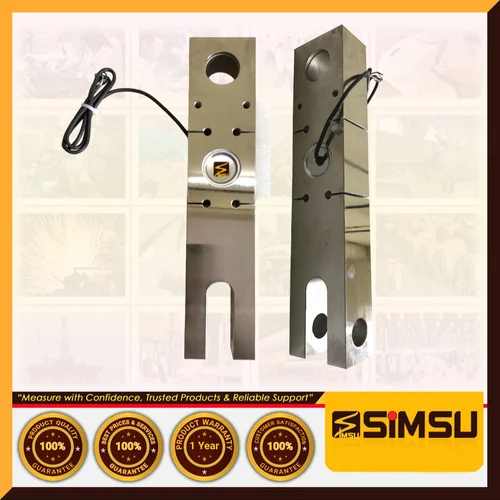

Introducing SIMSU-IN-STL-S50 S Load Cell, the perfect solution for industrial weighing applications. This digital sensor load cell operates semi-automatically, making it easy to use. With a compensated temperature range of -10 to +40 degrees Celsius, this load cell can handle capacities ranging from 5kg to 10 Ton. Made with durable alloy steel material, it ensures reliability and longevity. It has an input resistance of 390 +/- 10 Ohm and an output resistance of 350 +/- 2 Ohm with an output sensitivity of 2.0 +/- 0.04 mV/V. It has a recommended excitation voltage range of 9 to 12V DC, and it comes with a 3-meter cable length.
| Cable Length | 3 Meters |
| Input Resistance | 390 +/- 10 Ohm |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Maximum Safe Overload | 150% FS |
| Model | SIMSU-IN-STL-S50 |
| Output Resistance | 350 +/- 2 Ohm |
| Output Sensitivity(FS) | 2.0 +/- 0.04 mV/V |
| Recommended Excitation Voltage | 9 to 12V DC |
| Ultimate Safe Overload | 200% FS |
| Zero balance | +/- 1% FS |
FAQs of SIMSU-IN-STL-S50 S Load Cell:
Q: What is the capacity range of SIMSU-IN-STL-S50 S Load Cell?
A: The capacity range of SIMSU-IN-STL-S50 S Load Cell ranges from 5kg to 10 Ton.Q: What is the operating method of this load cell?
A: This load cell operates semi-automatically.Q: What is the recommended excitation voltage range for this load cell?
A: The recommended excitation voltage range for this load cell is 9 to 12V DC.Q: What is the material used to make this load cell?
A: This load cell is made with durable alloy steel material.Q: What is the temperature range this load cell can handle?
A: This load cell can handle a temperature range of -10 to +40 degrees Celsius.
